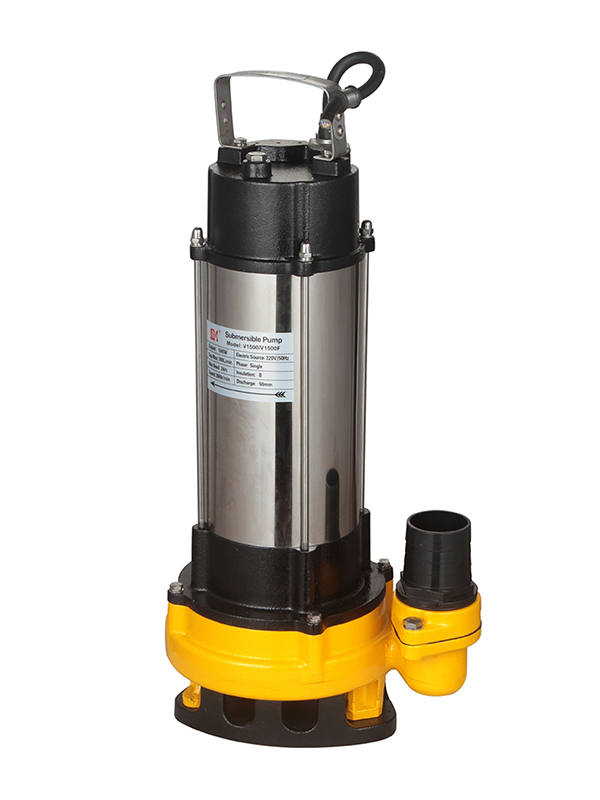

V1500
產品描述
性能曲線 / Performance curve
用途與特點 / Function and Feature
V(WQ)污水潛水泵系列單、三相污水潛水電泵是目前較先進與理想的排污機具。用“V”來代替“WQ”表示泵的過流部件設計獨特，高效區寬廣，具有全揚程(無過載)，能在較大流量范圍內高效安全運行。葉輪的大通道防堵塞設計使泵能有效的輸送含有直徑15~25毫米的固體顆粒的雜質，長纖維等的流體。選用下吸結構和不銹鋼及特殊的鑄鐵制造具有排水徹底和耐腐蝕作用，配浮球開關后隨著液位的變化能實現自動控制啟停。電機內裝有保護器遇到過熱或過電流時會自動切斷電源，保證了泵在較惡劣環境下運行的安全性與可靠性。
DIAGRAM分解圖 (For the reference of purchasing spare parts供選購配件時參考)
| NO. | DESCRIPTION |
| 1 | Bolt |
| 2 | Stretching washer |
| 3 | Washer |
| 4 | Bolt |
| 5 | Washer |
| 6 | Handle |
| 7 | Nut |
| 8 | Protector |
| 9 | Cable presser |
| 10 | Washer |
| 11 | Screw |
| 12 | Bolt |
| 13 | "O" ring |
| 14 | Screw |
| 15 | Flange |
| 16 | Cable |
| 17 | Cable protector |
| 18 | Capacitor cover |
| 19 | Capacitor |
| 20 | "O" ring |
| 21 | Rubber washer |
| 22 | Screw |
| 23 | Stretching washer |
| 24 | Washer |
| 25 | Line protector |
| 26 | Motor cover |
| 27 | Thermal protector |
| 28 | "O" ring |
| 29 | Motor stator |
| NO. | DESCRIPTION |
| 30 | Undulated washer |
| 31 | Ball bearing |
| 32 | Rotor |
| 33 | Ball bearing |
| 34 | Screw |
| 35 | Washer |
| 36 | Connection part |
| 37 | Mechanical seal |
| 38 | "O" ring |
| 39 | Oil chamber cover |
| 40 | Screw |
| 41 | Washer |
| 42 | "O" ring |
| 43 | Screw |
| 44 | Oil seal |
| 45 | Impeller |
| 46 | Nut |
| 47 | Bolt |
| 48 | Washer |
| 49 | Out-let connector |
| 50 | "O" ring |
| 51 | Connection nut |
| 52 | Rubber washer |
| 53 | Pump body |
| 54 | Base plate |
| 55 | Washer |
| 56 | Screw |
| 57 | Key |
| 58 | Float swith |
技術參數 / TECHNICAL DATA
| Model 型號 |
Power 功率 (W) |
Outlet Diameter 出水口徑 (mm) |
Voltage 電壓 (V) |
Max. Flow 最大流量 (L/min) |
Max. Head 最高揚程 (m) |
Weight 毛重 (kg) |
Packing 包裝尺寸 (cm) |
| V 1500-2"(F)底腳板 | 1500 | 50 | 220/380 | 300 | 24 | 25 | 28x22x56 |
| V 1500-3"(F)底腳板 | 1500 | 80 | 220/380 | 500 | 18 | 26 | 25x25x58 |
型號后加“F”表示裝配浮球開關的水泵
